Levelling to a grid

%load_ext autoreload
%autoreload 2

import bordado as bd
import boule
import cmocean
import numpy as np
import pandas as pd
import pooch
import pyproj
import verde as vd
import xarray as xr

import airbornegeo

Load survey data

This is a subset of the BAS AGAP survey over Antarctica’s Gamburtsev Subglacial Mountains. The file is download and subset in the notebook AGAP_gravity_survey, and the BAS processing steps are repeated in the notebook processing_AGAP_gravity_survey.

data_df = pd.read_csv("data/AGAP_gravity_survey_processed.csv")
data_df = data_df[
    [
        "easting",
        "northing",
        "height",
        "line",
        "unixtime",
        "distance_along_line",
        "grav_disturbance_filt",
    ]
]
data_df.head()

	easting	northing	height	line	unixtime	distance_along_line	grav_disturbance_filt
0	1.000024e+06	226237.330771	4156.1	1	1.229507e+09	0.000000	49.38
1	1.000083e+06	226246.631269	4156.0	1	1.229507e+09	59.842447	49.45
2	1.000142e+06	226255.809132	4156.1	1	1.229507e+09	119.693401	49.52
3	1.000201e+06	226264.969079	4156.4	1	1.229507e+09	179.545645	49.58
4	1.000260e+06	226274.156809	4156.6	1	1.229507e+09	239.285174	49.65

# Wrap data into a Survey, storing column names for reuse
survey = airbornegeo.Survey(
    data_df,
    line_column="line",
    distance_column="distance_along_line",
)
survey

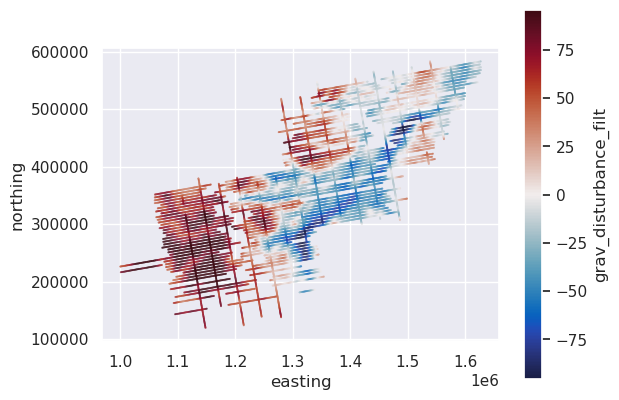

# plot the data
max_abs = vd.maxabs(data_df.grav_disturbance_filt, percentile=95)
ax = data_df[::20].plot.scatter(
    "easting",
    "northing",
    c="grav_disturbance_filt",
    s=0.1,
    cmap=cmocean.cm.balance,
    vmin=-max_abs,
    vmax=max_abs,
)
ax.set_aspect("equal")

Get a grid of gravity disturbance at 10km

# Download satellite gravity data from EIGEN-6C4 model
path = pooch.retrieve(
    url="doi:10.5281/zenodo.5882207/earth-gravity-10arcmin.nc",
    known_hash="d55134501da0d984f318c0f92e1a15a8472176ec7babde5edfdb58855190273e",
    progressbar=True,
)
grid = xr.load_dataset(path)

# add height as variable
grid["ellipsoidal_height"] = xr.full_like(grid.gravity, 10e3)


# subset to geographic region of interest
region = bd.get_region((data_df.easting, data_df.northing))
region_pad = bd.pad_region(region, 20e3)
transformer = pyproj.Transformer.from_crs("epsg:3031", "epsg:4326")
region_geo = transformer.transform_bounds(
    left=region_pad[0],
    bottom=region_pad[2],
    right=region_pad[1],
    top=region_pad[3],
)
grid = grid.sel(
    latitude=slice(region_geo[0], region_geo[2]),
    longitude=slice(region_geo[1], region_geo[3]),
)


# calculated normal gravity at all EIGEN observation locations
grid["normal_gravity"] = boule.WGS84.normal_gravity(
    (None, grid.latitude, grid.ellipsoidal_height),
)

# calculate gravity disturbance
grid["disturbance"] = grid.gravity - grid.normal_gravity

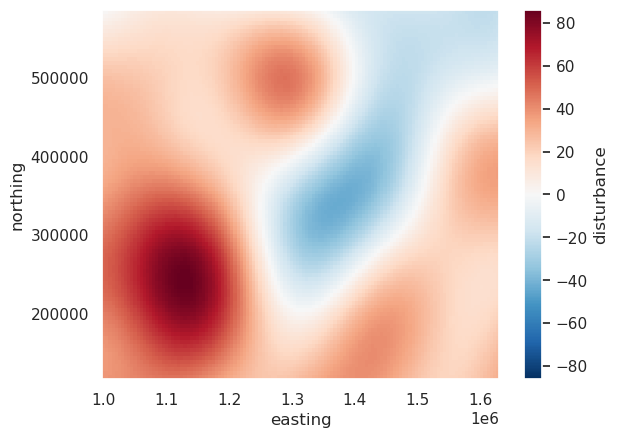

# reproject to polar stereographic
eigen_disturbance = vd.project_grid(
    grid.disturbance,
    projection=pyproj.Proj("epsg:3031"),
    spacing=5e3,
    region=region,
)
eigen_disturbance.plot()

<matplotlib.collections.QuadMesh at 0x7f513ac8ac10>

Upward continue survey data to same height as gravity grid

In order to accurately compare the survey gravity data to the grid, the gravity data should be upward continued so it’s at the same altitude.

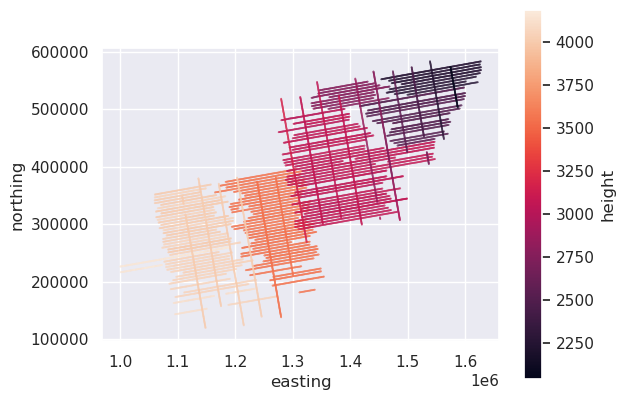

# plot the data
ax = data_df[::20].plot.scatter(
    "easting",
    "northing",
    c="height",
    s=0.1,
)
ax.set_aspect("equal")

blocked_survey = survey.block_reduce(
    np.median,
    spacing=1000,
    reduce_by="distance_along_line",
)
blocked_survey

# fit a set of equivalent sources to each line individually
eqs = blocked_survey.eq_sources_1d(
    data_column="grav_disturbance_filt",
    damping=None,
    block_size=1000,  # for speed, block reduce sources
)
eqs

# upward continue each line to 10 km (height of EIGEN disturbance)
blocked_survey.upward_continue_by_line(
    eqs,
    10e3,
    result_column="upward_continued_10km",
)
blocked_survey.head()

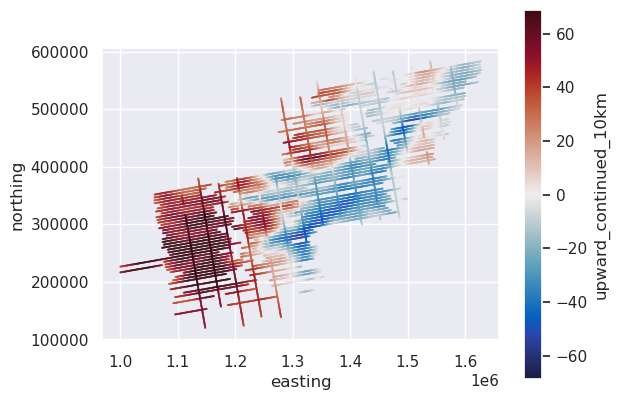

# plot the upward continued data
max_abs = vd.maxabs(blocked_survey.upward_continued_10km, percentile=95)
ax = blocked_survey.plot.scatter(
    "easting",
    "northing",
    c="upward_continued_10km",
    s=0.1,
    cmap=cmocean.cm.balance,
    vmin=-max_abs,
    vmax=max_abs,
)
ax.set_aspect("equal")

Sample the satellite gravity grid values into the dataframe

# sample grid along lines
blocked_survey.sample_grid(
    eigen_disturbance,
    result_column="sampled_satellite_values",
)
blocked_survey.head()

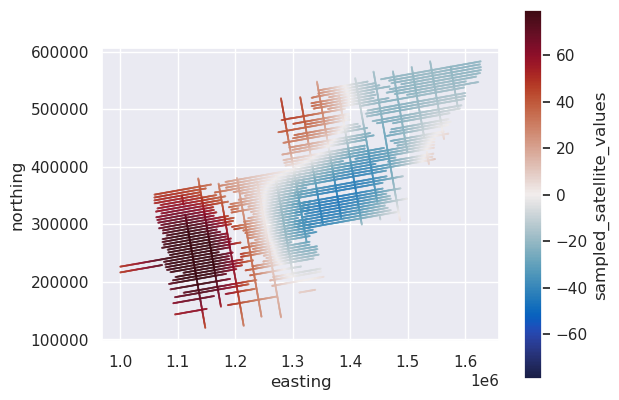

# plot the sampled grid values
max_abs = vd.maxabs(blocked_survey.sampled_satellite_values, percentile=95)
ax = blocked_survey.plot.scatter(
    "easting",
    "northing",
    c="sampled_satellite_values",
    s=0.1,
    cmap=cmocean.cm.balance,
    vmin=-max_abs,
    vmax=max_abs,
)
ax.set_aspect("equal")

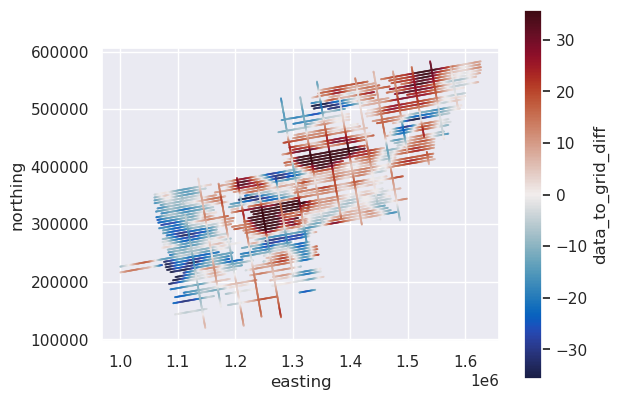

# plot the difference
blocked_survey["data_to_grid_diff"] = (
    blocked_survey.upward_continued_10km - blocked_survey.sampled_satellite_values
)
max_abs = vd.maxabs(blocked_survey.data_to_grid_diff, percentile=95)
ax = blocked_survey.plot.scatter(
    "easting",
    "northing",
    c="data_to_grid_diff",
    s=0.1,
    cmap=cmocean.cm.balance,
    vmin=-max_abs,
    vmax=max_abs,
)
ax.set_aspect("equal")

Level the lines to the grid

blocked_survey.level_to_grid(
    data_column="upward_continued_10km",
    grid_column="sampled_satellite_values",
    result_column="levelled_trend_0",
    fit_by_column="distance_along_line",
    degree=0,  # DC shift
)
blocked_survey.head()

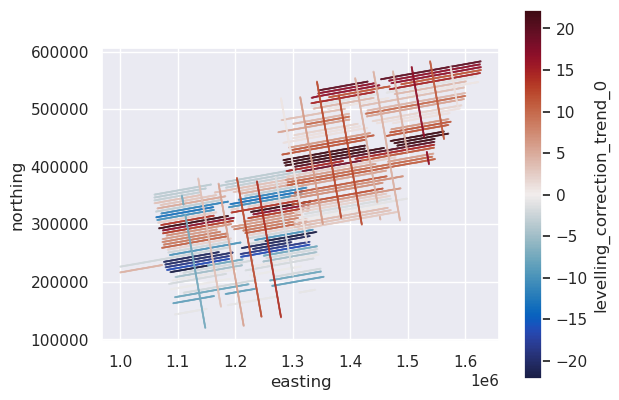

# plot the levelling correction
blocked_survey["levelling_correction_trend_0"] = (
    blocked_survey.upward_continued_10km - blocked_survey.levelled_trend_0
)
max_abs = vd.maxabs(blocked_survey.levelling_correction_trend_0, percentile=95)
ax = blocked_survey.plot.scatter(
    "easting",
    "northing",
    c="levelling_correction_trend_0",
    s=0.1,
    cmap=cmocean.cm.balance,
    vmin=-max_abs,
    vmax=max_abs,
)
ax.set_aspect("equal")

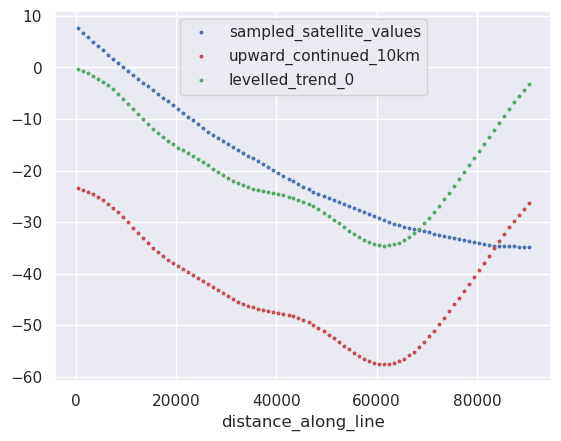

# look at just 1 of the leveled lines
line_df = blocked_survey[blocked_survey.line == 2]
ax = line_df.plot.line(
    "distance_along_line",
    "sampled_satellite_values",
    style="bp",
    ms=2,
)
ax = line_df.plot.line(
    "distance_along_line",
    "upward_continued_10km",
    style="rp",
    ms=2,
    ax=ax,
)
ax = line_df.plot.line(
    "distance_along_line",
    "levelled_trend_0",
    style="gp",
    ms=2,
    ax=ax,
)

Level the entire survey to the grid

Instead of levelling each line individually to the grid, we can level the entire survey together to the grid. To do this, we don’t supply the groupby_column argument, and choose the coordinate columns for the the fit_by_column argument.

blocked_survey.level_to_grid(
    data_column="upward_continued_10km",
    grid_column="sampled_satellite_values",
    result_column="levelled_trend_1",
    fit_by_column=("easting", "northing"),  # fit trend based on coordinates
    degree=1,
).level_to_grid(
    data_column="upward_continued_10km",
    grid_column="sampled_satellite_values",
    result_column="levelled_trend_2",
    fit_by_column=("easting", "northing"),  # fit trend based on coordinates
    degree=2,
)
blocked_survey.head()

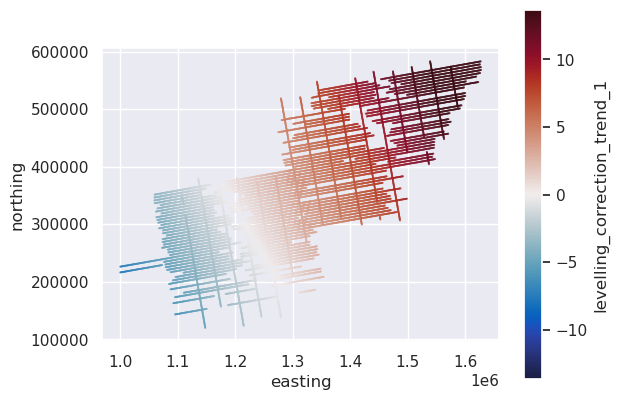

# plot the levelling correction
blocked_survey["levelling_correction_trend_1"] = (
    blocked_survey.upward_continued_10km - blocked_survey.levelled_trend_1
)
max_abs = vd.maxabs(blocked_survey.levelling_correction_trend_1, percentile=95)
ax = blocked_survey.plot.scatter(
    "easting",
    "northing",
    c="levelling_correction_trend_1",
    s=0.1,
    cmap=cmocean.cm.balance,
    vmin=-max_abs,
    vmax=max_abs,
)
ax.set_aspect("equal")

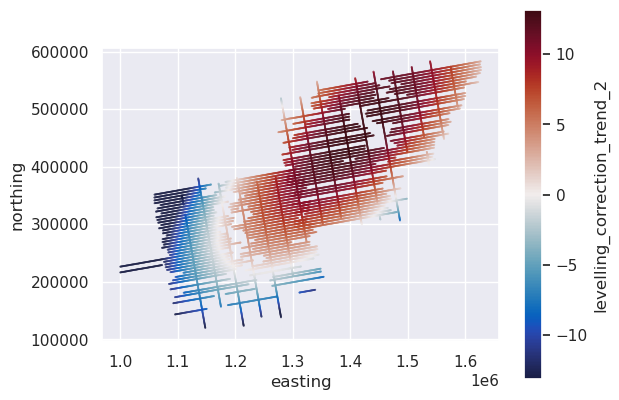

# plot the levelling correction
blocked_survey["levelling_correction_trend_2"] = (
    blocked_survey.upward_continued_10km - blocked_survey.levelled_trend_2
)
max_abs = vd.maxabs(blocked_survey.levelling_correction_trend_2, percentile=95)
ax = blocked_survey.plot.scatter(
    "easting",
    "northing",
    c="levelling_correction_trend_2",
    s=0.1,
    cmap=cmocean.cm.balance,
    vmin=-max_abs,
    vmax=max_abs,
)
ax.set_aspect("equal")
