Find survey intersections between groups

This notebooks demonstrates the grouped method of finding crossovers or intersections between the flights or lines of a survey. See the previous notebook for the basics of finding crossovers.

%load_ext autoreload
%autoreload 2


import logging

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import plotly.io as pio
import verde as vd

import airbornegeo

# setup logging to get some additional info from the airbornegeo functions
logging.getLogger("airbornegeo").setLevel("INFO")
logging.basicConfig()
pio.renderers.default = "notebook"

The autoreload extension is already loaded. To reload it, use:
  %reload_ext autoreload

Load data

This is a subset of the BAS AGAP survey over Antarctica’s Gamburtsev Subglacial Mountains. The file is downloaded and subset in the notebook AGAP_magnetic_survey.

data_df = pd.read_csv("data/AGAP_magnetic_survey_processed_blocked.csv")
data_df = data_df[
    [
        "easting",
        "northing",
        "height",
        "line",
        "unixtime",
        "distance_along_line",
        "mag",
    ]
]

data_df = data_df.rename(columns={"line": "line_id"})

data_df = data_df.rename(columns={"distance_along_line": "along_line_distance"})

# for testing limit number of lines
data_df = data_df[~data_df.line_id.between(133, 142)]
data_df = data_df[~data_df.line_id.between(168, 176)]
data_df = data_df[
    (data_df.line_id.isin(data_df.line_id.unique()[::2])) | (data_df.line_id >= 143)
]

# define survey lines (0) vs tie lines (1)
data_df["line_type"] = np.where(data_df.line_id >= 142, 1, 0)

data_df.head()

	easting	northing	height	line_id	unixtime	along_line_distance	mag	line_type
0	621152.853769	159064.167598	4112.55	1	1.229500e+09	81.451091	-34.245	0
1	621367.339673	159092.051982	4119.45	1	1.229500e+09	297.742539	-37.740	0
2	621580.287957	159122.206492	4124.15	1	1.229500e+09	512.819231	-40.975	0
3	621766.100699	159150.747140	4127.50	1	1.229500e+09	700.811387	-43.430	0
4	621924.954435	159176.326498	4131.00	1	1.229500e+09	861.711758	-45.300	0

survey = airbornegeo.Survey(
    data_df,
    line_column="line_id",
    line_type_column="line_type",
    distance_column="along_line_distance",
)
survey

print("Total number of lines:", len(data_df.line_id.unique()))

Total number of lines: 121

print("Number of survey lines:", len(data_df[data_df.line_type == 0].line_id.unique()))

Number of survey lines: 66

print("Number of tie lines:", len(data_df[data_df.line_type == 1].line_id.unique()))

Number of tie lines: 55

This survey has 121 lines, 66 ~E-W survey lines, and 55 ~N-S tie lines. They are marked with the column line_type, with values of 0 or 1. We plot the each line below with different colors.

fig, ax = plt.subplots(figsize=(10, 10))
ax = survey.plot(ax=ax, color_by="line_id", categorical=True)

Calculate intersections of lines and ties

We want to calculate the theoretical intersection points between lines of different type. These types are denoted in the dataframe by the column ‘line_type’. In our case, this column has values of 0 for E-W survey lines, and 1 for N-S tie lines. We referred to this as the “groups” method, since we only consider intersections between lines of two different types.

If two lines of the same type were to cross, we would not count this as an intersect. In the next notebook we will demonstrate the “network” method, which considers all intersection between any combination of line, regardless of their type.

survey.create_intersection_table(method="groups", buffer_dist=500)
inters = survey.intersections
inters

Below are two maps showing the results. The second is interactive and lets you move around, zoom in, and see info associated with each intersection.

ax = data_df.plot.scatter(
    "easting",
    "northing",
    color="k",
    s=1,
    lw=0,
    marker=",",
    alpha=0.01,
)
inters.plot.scatter(
    "easting",
    "northing",
    c="max_dist",
    s=10,
    cmap="magma_r",
    marker="o",
    edgecolor="black",
    linewidth=0.1,
    ax=ax,
    label="intersections",
)
# zoom into region with intersections
reg = vd.get_region((inters.easting, inters.northing))
reg = vd.pad_region(reg, 20e3)
ax.set_xlim(reg[0], reg[1])
ax.set_ylim(reg[2], reg[3])

airbornegeo.add_scalebar(ax, 100e3)
ax.set_aspect("equal")

/home/mdtanker/airbornegeo/.pixi/envs/default/lib/python3.14/site-packages/pandas/plotting/_matplotlib/core.py:1388: UserWarning: The pixel maker ',' is not supported on scatter(); using a finite-sized square instead, which is not necessarily 1 pixel in size. Use the square marker 's' instead to suppress this warning.
  scatter = ax.scatter(

fig = airbornegeo.plotly_points(
    data_df,
    color="gray",
    hover_cols=["line_id"],
    size=1,
)
fig = airbornegeo.plotly_points(
    inters,
    fig=fig,
    color_col="max_dist",
    hover_cols=["line1", "line2", "is_buffered"],
    size=4,
    edge_width=0.2,
    cmap="magma_r",
    robust=False,
)

fig.show()

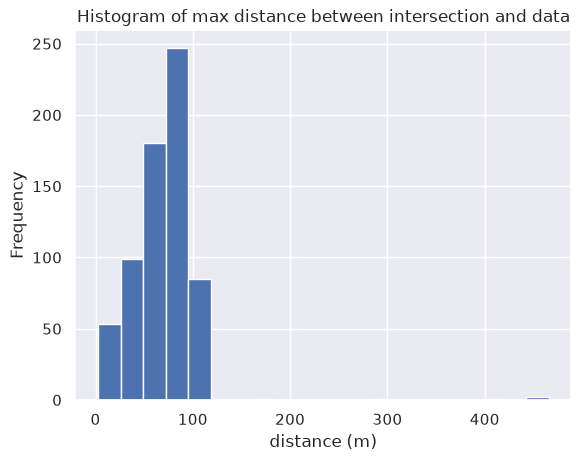

We can analyze the max_dist values to see if there are any outlier crossovers which are really far from the nearest data. This shows there are a few crossovers over 400 m away from the line data. These can be excluded with cutoff_dist.

ax = inters.max_dist.plot.hist(bins=20)
ax.set_xlabel("distance (m)")
ax.set_title("Histogram of max distance between intersection and data");

We can also see which lines don’t have any intersections.

survey.lines_without_intersections()

Or which pairs of lines have multiple intersections.

inters[inters.duplicated(subset=["line1", "line2"], keep=False)]

	line1	line2	is_buffered	is_proximity	geometry	easting	northing	max_dist
