4. Using equivalent sources for cross-over errors

For some data types, such as gravity and magnetics, the value of the data depends on the the elevation it was collected at. For an intersection, if the two lines were flown at different altitudes, the intersection point is only the intersection in 2D space, not in 3D. To make it a true 3D intersection, we can perform upward continuation on the data so that the values of both lines represent the values that would have been observed if the flights were flown at the same altitude. We don’t actually need to upward continue the entire lines, just the single points which make up the intersection.

# %load_ext autoreload
# %autoreload 2


import logging

import geopandas as gpd
import numpy as np
import pandas as pd
import plotly.io as pio

import airbornegeo

# setup logging to get some additional info from the airbornegeo functions
logging.getLogger("airbornegeo").setLevel("INFO")
logging.basicConfig()
pio.renderers.default = "notebook"

/home/sungw937/airbornegeo/.pixi/envs/default/lib/python3.14/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

4.1. Load data

This is a subset of the BAS AGAP survey over Antarctica’s Gamburtsev Subglacial Mountains. The file is download and subset in the notebook AGAP_magnetic_survey, and the BAS processing steps are repeated in the notebook processing_AGAP_magnetic_survey.

data_df = pd.read_csv("data/AGAP_magnetic_survey_processed_blocked.csv")
data_df = data_df[
    [
        "easting",
        "northing",
        "height",
        "line",
        "unixtime",
        "distance_along_line",
        "mag",
    ]
]

# for testing limit number of lines
data_df = data_df[~data_df.line.between(133, 142)]
data_df = data_df[~data_df.line.between(168, 176)]
data_df = data_df[
    (data_df.line.isin(data_df.line.unique()[::2])) | (data_df.line >= 143)
]

# drop rows with any nans
data_df = data_df.dropna(how="any")

# define flight lines vs tie lines with column 'tie' which is True or False
data_df["tie"] = False
data_df.loc[data_df.line >= 142, "tie"] = True

# convert dataframe into geodataframe
data_df = gpd.GeoDataFrame(
    data_df,
    geometry=gpd.points_from_xy(data_df.easting, data_df.northing),
    crs="EPSG:3031",
)

data_df.head()

	easting	northing	height	line	unixtime	distance_along_line	mag	tie	geometry
0	621099.093988	159056.748193	4110.45	1	1.229500e+09	27.181565	-33.385	False	POINT (621099.094 159056.748)
1	621206.517953	159071.301512	4114.50	1	1.229500e+09	135.587530	-35.120	False	POINT (621206.518 159071.302)
2	621313.794221	159085.113599	4117.90	1	1.229500e+09	243.749367	-36.875	False	POINT (621313.794 159085.114)
3	621420.722903	159099.184618	4120.80	1	1.229500e+09	351.600337	-38.585	False	POINT (621420.723 159099.185)
4	621527.158177	159114.303863	4123.15	1	1.229500e+09	459.104857	-40.205	False	POINT (621527.158 159114.304)

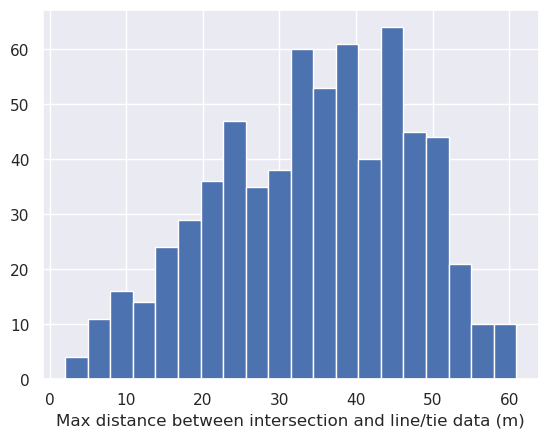

4.2. Find intersections

# calculate theoretical intersection points
inters = airbornegeo.create_intersection_table(data_df)

Line/tie combinations: 100%|██████████| 3630/3630 [00:00<00:00, 4013.77it/s]
Potential intersections: 100%|██████████| 670/670 [00:12<00:00, 53.79it/s]
INFO:airbornegeo:found 662 intersections

4.3. Add intersections as rows to the dataframe

This just performs a cubic interpolation using windows of data on either/both sides of the intersection, we haven’t used equivalent sources yet.

data_df, inters = airbornegeo.interpolate_intersections(
    data_df,
    inters,
    to_interp="mag",
    window_width=500,
    method="cubic",
    extrapolate=False,
)

Segments: 100%|██████████| 121/121 [00:09<00:00, 12.66it/s]

# re-define flight lines vs tie lines with column 'tie' which is True or False
data_df["tie"] = False
data_df.loc[data_df.line >= 142, "tie"] = True

lines_without_inters = airbornegeo.lines_without_intersections(data_df, inters)
lines_without_inters

[np.int64(107),
 np.int64(109),
 np.int64(129),
 np.int64(131),
 np.int64(188),
 np.int64(189),
 np.int64(190),
 np.int64(192),
 np.int64(193),
 np.int64(194),
 np.int64(203)]

# drop lines without intersections
data_df = data_df[~data_df.line.isin(lines_without_inters)]

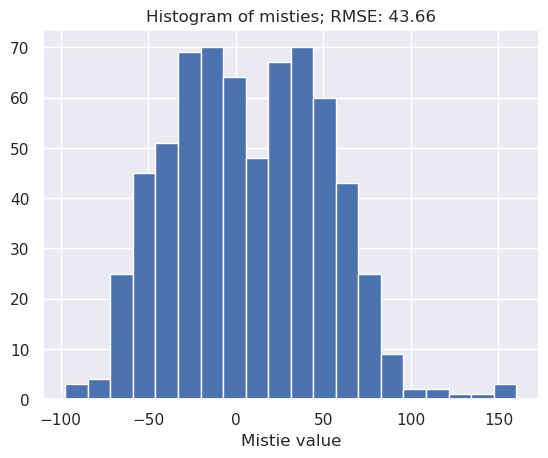

4.4. Calculate intersection cross-over errors

Now we have interpolated magnetic values for each intersecting line at the intersection points, we can calculate the cross-over errors for each intersection

inters = airbornegeo.calculate_crossover_errors(
    data_df,
    inters,
    data_col="mag",
    plot_map=True,
)

4.5. Inspect flight altitudes

airbornegeo.plotly_points(
    data_df[::50],
    color_col="height",
    hover_cols=["line"],
)

4.6. Inspect flight altitude difference at intersection points

# perform interpolation again, this time with height column
data_df_height, _inters_height = airbornegeo.interpolate_intersections(
    data_df,
    inters,
    to_interp="height",
    window_width=500,
    method="cubic",
    extrapolate=False,
)

# add the interpolated height values to the orginal dataframe's intersection rows
for ind, row in data_df[data_df.is_intersection].iterrows():
    height = data_df_height[
        (data_df_height.line == row.line)
        & (data_df_height.intersecting_line == row.intersecting_line)
    ].height.to_numpy()
    assert len(height) == 1
    data_df.loc[ind, "height"] = height

data_df[data_df.is_intersection].head()

Segments: 100%|██████████| 110/110 [00:09<00:00, 11.63it/s]

	easting	northing	height	line	unixtime	distance_along_line	mag	tie	geometry	is_intersection	intersecting_line	mag_interpolation_type
7453	637640.0	161826.0	4122.332685	1	NaN	16811.103180	-53.846042	False	POINT (637640 161826)	True	150.0	interpolated
7454	670007.0	167673.0	4132.634362	1	NaN	49821.820318	-80.387990	False	POINT (670007 167673)	True	151.0	interpolated
7455	702402.0	173414.0	4156.031337	1	NaN	82726.336899	-44.550155	False	POINT (702402 173414)	True	152.0	interpolated
7456	702430.0	173419.0	4156.517464	1	NaN	82767.019948	-44.908585	False	POINT (702430 173419)	True	153.0	interpolated
7457	734809.0	179103.0	4121.060700	1	NaN	115638.011785	-120.195968	False	POINT (734809 179103)	True	154.0	interpolated

# add flight and tie heights to intersections table
inters["flight_height"] = np.nan
inters["tie_height"] = np.nan
for ind, row in inters.iterrows():
    # search data for values at intersecting lines
    flight_values = data_df[
        (data_df.line == row.line) & (data_df.intersecting_line == row.tie)
    ]
    tie_values = data_df[
        (data_df.line == row.tie) & (data_df.intersecting_line == row.line)
    ]

    # get heights
    flight_height = flight_values.height.to_numpy()
    tie_height = tie_values.height.to_numpy()

    # add to intersection table
    inters.loc[ind, "flight_height"] = flight_height
    inters.loc[ind, "tie_height"] = tie_height
inters.head()

	line	tie	geometry	max_dist	easting	northing	dist_along_flight_line	dist_along_flight_tie	flight_interpolation_type	tie_interpolation_type	mistie_0	flight_height	tie_height	inter_height_diff
0	1	143	POINT (1158153 254083)	16.441255	1158153.0	254083.0	545768.072695	138071.419338	interpolated	interpolated	100.458661	4168.038983	4008.397691	938.813163
1	1	144	POINT (1190820 259865)	24.124887	1190820.0	259865.0	578952.394781	131585.125284	interpolated	interpolated	32.151483	4174.500813	4010.840823	941.256295
2	1	145	POINT (1223524 265689)	17.269650	1223524.0	265689.0	612181.972720	147253.496664	interpolated	interpolated	72.936553	3544.149925	3995.961216	926.376688
3	1	146	POINT (1256193 271497)	31.608179	1256193.0	271497.0	645372.035087	136211.666619	interpolated	interpolated	84.125118	3564.579994	3578.174277	508.589749
4	1	147	POINT (1288901 277249)	50.174377	1288901.0	277249.0	678598.170740	155115.224990	interpolated	interpolated	-7.731396	3536.160719	3545.947314	476.362786

inters["inter_height_diff"] = np.abs(inters["flight_height"] - inters["tie_height"])
airbornegeo.plotly_points(
    inters,
    color_col="inter_height_diff",
    hover_cols=["line", "tie"],
    robust=False,
    size=6,
)

airbornegeo.plot_line_and_crosses(
    data_df,
    line=148,
    x="distance_along_line",
    y=["height", "mag"],
    y_axes=[1, 2],
    plot_inters=True,
)

From the above plot showing line 148, we can see many of the cross lines were flown several hundred meters higher or lower.

4.7. Fit equivalent sources to each line

eqs = airbornegeo.eq_sources_1d(
    data_df,
    data_column="mag",
    depth="default",
    damping=None,
    block_size=500,
    groupby_column="line",
)

Groups: 100%|██████████| 110/110 [01:29<00:00,  1.23it/s]

4.8. Upward continue the intersection points to common altitudes

For each intersection point, we find the highest of the two flight elevations, and upward continue the lower data point to this height. This only changes the individual intersection point, not any of the rest of the line. You can see in the below profile of line 148 that the line data is the same between mag and the new column mag_eqs, but if you look at the intersection points (diamonds), you will see some of the have shifted slightly.

data_df["mag_eqs"] = airbornegeo.update_intersections_with_eq_sources(
    data_df,
    fitted_equivalent_sources=eqs,
    data_column="mag",
)

Segments: 100%|██████████| 110/110 [00:05<00:00, 19.78it/s]

airbornegeo.plot_line_and_crosses(
    data_df,
    line=148,
    y=["height", "mag", "mag_eqs"],
    y_axes=[1, 2, 2],
    plot_inters=[True, True, True],
)

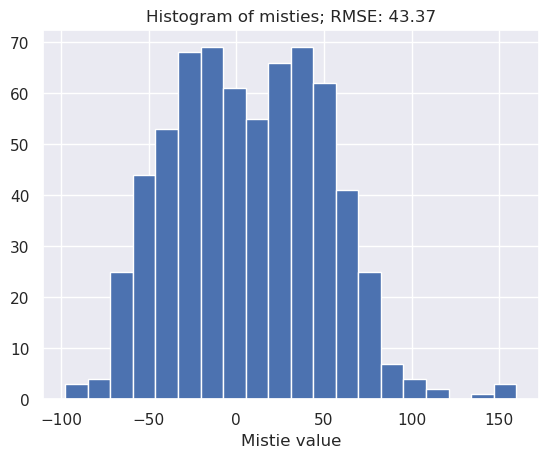

4.9. Recalculate cross-over errors with the updated intersection values

inters = airbornegeo.calculate_crossover_errors(
    data_df,
    inters,
    data_col="mag_eqs",
    plot_map=True,
)

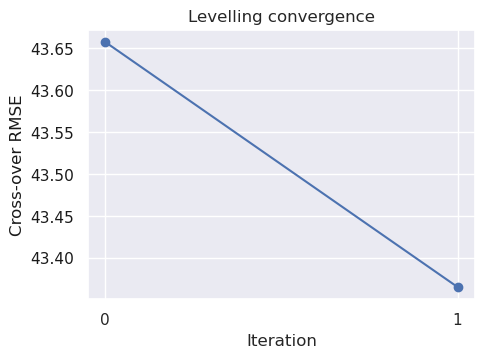

airbornegeo.plot_levelling_convergence(inters)

We can see that by just upward continuing the intersection points, we have slightly lowered the cross-over errors.
